The Minimum Graph Coloring Problem

Introduction

In this article we will model the minimum graph coloring problem. The goal: color a map with as few colors as possible while no two adjacent regions having the same color.

Read spatial data

First, let’s load some useful packages needed for (spatial) data processing.

library(rgeos)
library(rgdal)
library(maptools)
library(dplyr)

Then we read in the 50 states of the US.

# data from https://github.com/datasets/geo-boundaries-us-110m
# reference data from here: https://github.com/nvkelso/natural-earth-vector/tree/master/110m_cultural
# License of reference data: public domain (https://github.com/nvkelso/natural-earth-vector/blob/master/LICENSE.md)
map_data <- rgdal::readOGR("https://raw.githubusercontent.com/datasets/geo-boundaries-us-110m/84e946f6b1de01e2642bcdb17d5b697acb6b48c4/json/ne_110m_admin_1_states_provinces_shp_scale_rank.geojson", "OGRGeoJSON")

## OGR data source with driver: GeoJSON
## Source: "https://raw.githubusercontent.com/datasets/geo-boundaries-us-110m/84e946f6b1de01e2642bcdb17d5b697acb6b48c4/json/ne_110m_admin_1_states_provinces_shp_scale_rank.geojson", layer: "OGRGeoJSON"
## with 51 features
## It has 3 fields

Next step is to create an adjacency list to determine neighboring states.

# this gives as an adjancy list
neighbors <- spdep::poly2nb(map_data)

# a helper function that determines if two nodes are adjacent
is_adjacent <- function(i, j) {
  purrr::map2_lgl(i, j, ~ .y %in% neighbors[[.x]])
}

We can then ask:

is_adjacent(1, 2)

## [1] FALSE

is_adjacent(1, 3)

## [1] TRUE

Optimization model

Next, we will model the problem with ompr as a mixed integer linear program that tries to find a coloring with as few colors as possible.

library(ompr)

n <- nrow(map_data@data) # number of nodes aka states
max_colors <- 4 # 4 should be enough. But you increase this number.

# based on the formulation from here
# http://wwwhome.math.utwente.nl/~uetzm/do/IP-FKS.pdf
model <- MIPModel() %>%

  # 1 iff node i has color k
  add_variable(x[i, k], type = "binary", i = 1:n, k = 1:max_colors) %>%

  # 1 iff color k is used
  add_variable(y[k], type = "binary", k = 1:max_colors) %>%

  # minimize colors
  set_objective(sum_expr(y[k], k = 1:max_colors), direction = "min") %>%

  # each node is colored
  add_constraint(sum_expr(x[i, k], k = 1:max_colors) == 1, i = 1:n) %>%

  # if a color k is used, set y[k] to 1
  add_constraint(sum_expr(x[i, k], i = 1:n) <= n * y[k], k = 1:max_colors) %>%

  # no adjacent nodes have the same color
  add_constraint(x[i, k] + x[j, k] <= 1, i = 1:n, j = 1:n, k = 1:max_colors, is_adjacent(i, j))

model

## Mixed linear integer optimization problem
## Variables:
##   Continuous: 0
##   Integer: 0
##   Binary: 208
## Search direction: minimize
## Constraints: 935

The last constraint uses filter expressions:

add_constraint(x[i, k] + x[j, k] <= 1, i = 1:n, j = 1:n, k = 1:max_colors, is_adjacent(i, j))

This code generates a constraint for each combination of i, j and k with the additional constraint, that is_adjacent(i, j) needs to evaluate to TRUE. Using filter expressions let’s you design a very specific set of constraints with minimal code. This principle can be used with all functions that acceppt quantifiers: sum_expr, set_bounds, add_constraint and add_variable.

Solve it

Now since we have built the model, we will solve it using the excellent ROI package and the symphony solver. ompr.roi is a solver that takes an ompr package and translates it to ROI: this makes it possible to use range of solvers out of the box.

library(ROI)
library(ROI.plugin.symphony)
library(ompr.roi)

result <- solve_model(model, with_ROI("symphony"))

result

## Status: optimal
## Objective value: 4

Yay. We found the minimal coloring with 4 colors.

Plot the result

Last step is to plot the result. First we will get the colors from the optimal solution.

assigned_colors <- get_solution(result, x[i, k]) %>%
  filter(value > 0.9) %>%
  arrange(i)

head(assigned_colors, 5)

##   variable i k value
## 1        x 1 3     1
## 2        x 2 3     1
## 3        x 3 2     1
## 4        x 4 2     1
## 5        x 5 1     1

Then we need to prepare the data for ggplot and join the colors to the data.

library(ggplot2)
color_data <- map_data@data
color_data$color <- assigned_colors$k
plot_data_fort <- fortify(map_data, region = "adm1_code") %>%
  left_join(select(color_data, adm1_code, color),
            by = c("id" = "adm1_code")) %>%
  mutate(color = factor(color))

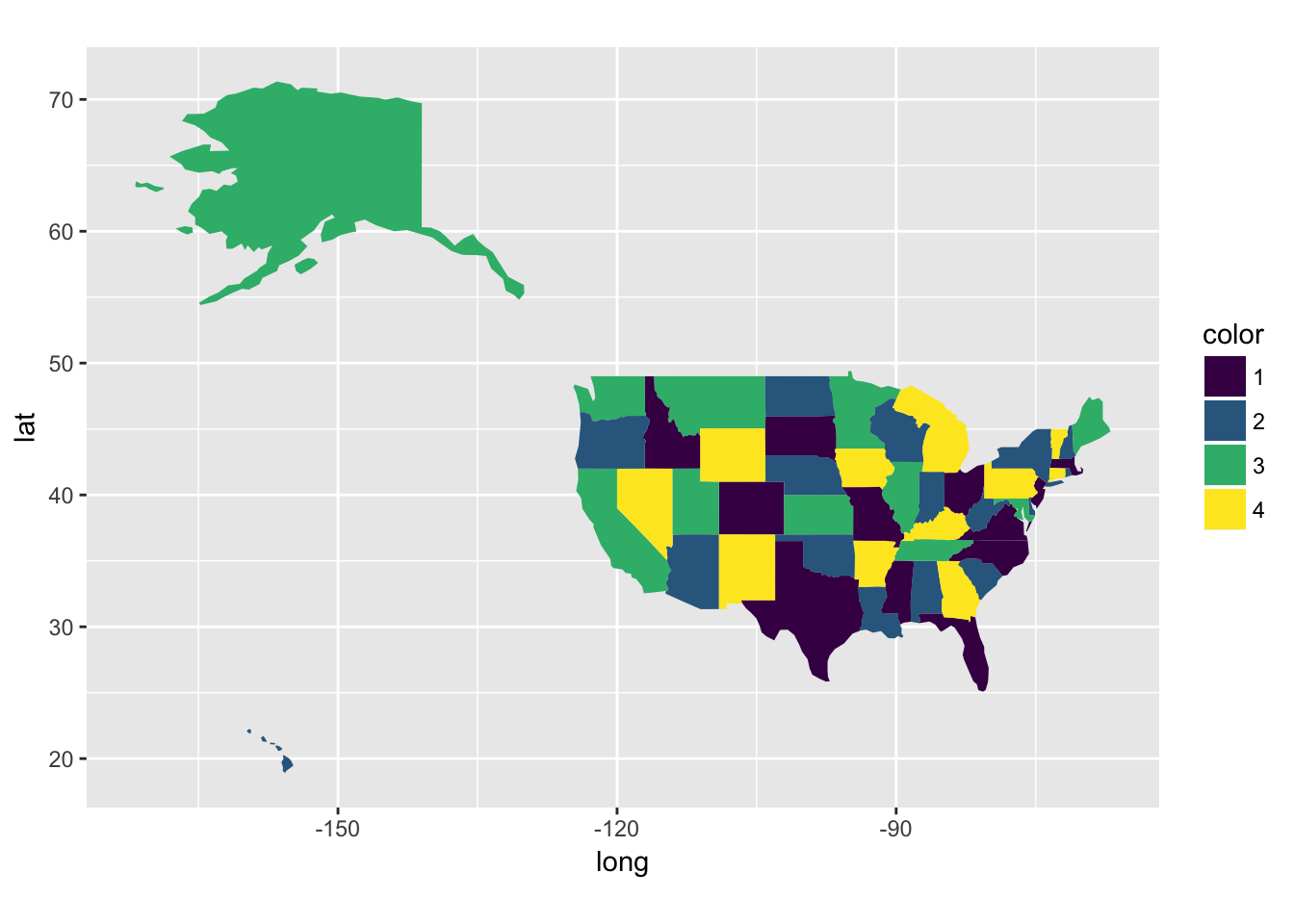

Now we have everything to plot it:

ggplot(plot_data_fort, aes(x = long, y = lat, group = group)) +
  geom_polygon(aes(fill = color)) +
  coord_quickmap() +
  viridis::scale_fill_viridis(discrete = TRUE, option = "D")

Feedback

Do you have any questions, ideas, comments? Or did you find a mistake? Let’s discuss on Github.

Dirk Schumacher
